Marine Windlass

FOB Reference Price:Get Latest Price
$100.00 - $9,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 20 >20
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hi-Sea
Model Number:
Hi-Sea
Power Source:
Electric
Application:
Boat
Marine Deck Equipment:
windlass
Supply Ability
Supply Ability:
1 Set/Sets per Month Sets
Packaging & Delivery
Packaging Details
Packing: wooden case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 35 To be negotiated
Product Description
Application
The windlass use the diesel, electric and hydraulic power as for the driven, we supply various types of marine windlass, such as symmetrical windlass, single windlass, single hydraulic windlass, etc. It can be used as a machine for automatic or nonautomatic, cause of the different driving form.
Advantages
HI-SEA marine's line of anchor windlass offers a variety of styles and size to handle it. The products have rugged design, heavy duty split bronze bearings and amply dimensioned brakes. The operating mechanism for brake and cluths are designed for easy and safe manual operating. We can modify the windlass to suit your special requirements.

Structures

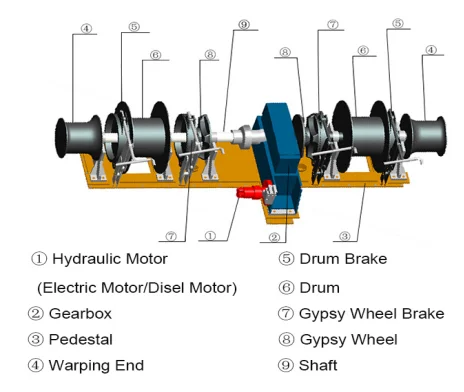

1. Marine windlass mainly units includes: base, bracket, chain wheel, brakes, sprocket, gearbox, control system(except manual windlass) and other components.

2. There are horizontal and vertical anchor windlass, the general ships widely use vertical anchor windlass. And vertical anchor windlass also called anchor capstan and its power below deck, to save deck area, naval ships widely use vertical anchor windlass.

3. Driving type: manual windlass, anchor steam windlass, electric windlass(DC electric windlass, AC electric windlass) and hydraulic windlass.

4. According to the arrangement: double gypsy wheels windlass, single gypsy wheel windlass, and combined windlass.

5. Supply capacity: chain diameter 19-150mm, rated load 15.3-860KN.

6. Control method: local control and remote control.







Certificates

The products approved by BV, ABS, CCS, RINA, GL,etc.



Packaging & Shipping

 Packaging Detail: plywood case, etc.



Port: shanghai, qingdao, dalian, etc.



Leading  Time: within 25 working days after deposit.



Our Services

 24/7 online support



online tracking



transparent and fair price

Company Information

 Our company is located in the largest industrial city – Chongqing, China. We are the earliest professional manufacturer and exporter of marine equipment and offshore Equipment in China since 1996 year. As the subsidiarycompany of the Chongqing Hi-Sea Marine, Our Group company has one forging facotory,one casting factory, Construction Material Machinery factory and one Import & Export Co.,Ltd.



FAQ

 1. Q:What is your material of your products?

A: Only new material can be used for our products.



2.Q: What is the minmum order quantity?

A: MOQ 1 piece. You are welcomed to consult for details.
